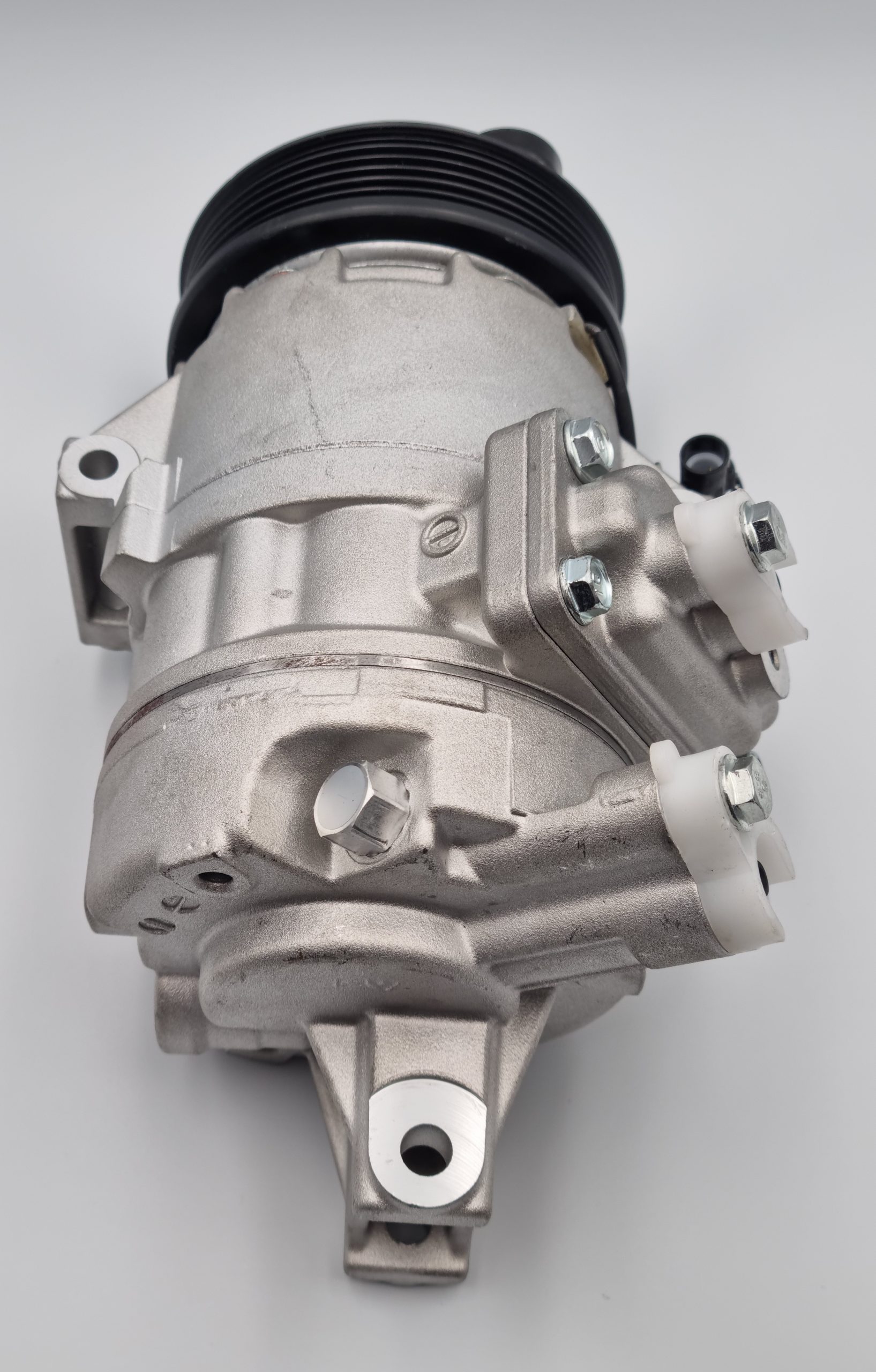

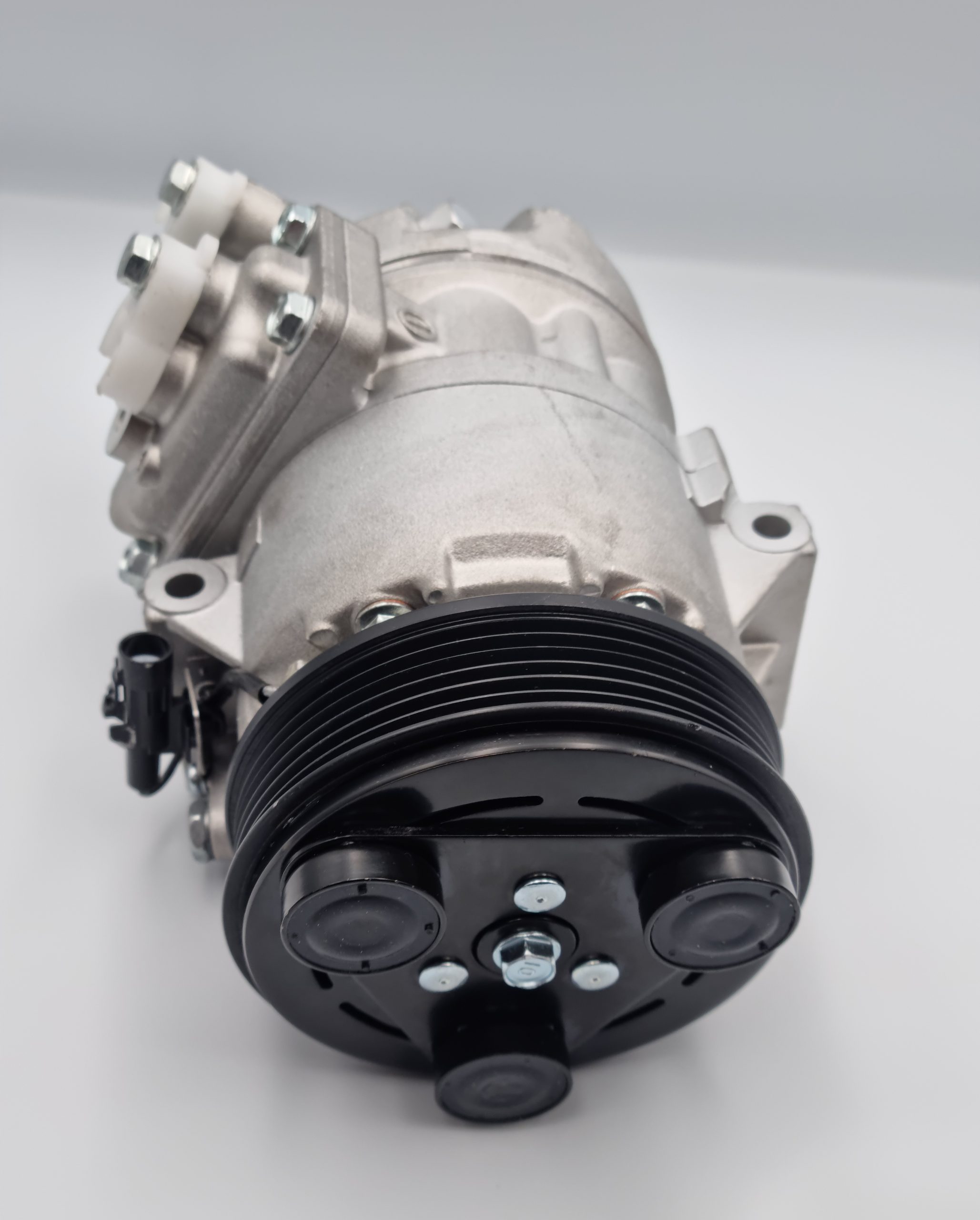

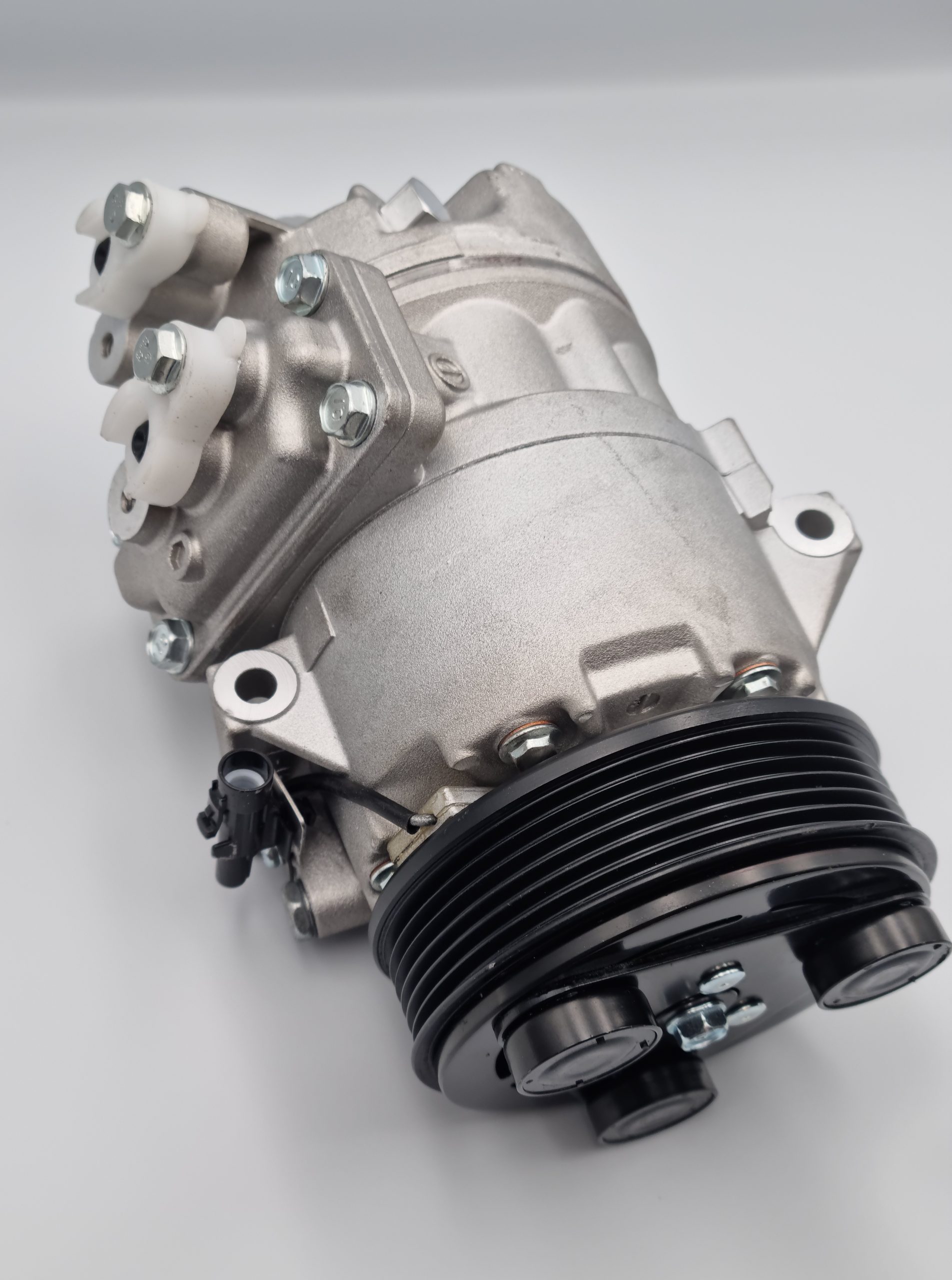

Suzuki Kizashi 2.4 Air Con Pump 2010-2013 CSV614 Compressor 95200-76KB1 OE Spec

Description

❄️ SUZUKI KIZASHI 2.4L AIR CONDITIONING COMPRESSOR | SAME-DAY DISPATCH

Keep your Suzuki Kizashi’s climate control running perfectly with this OE-specification CSV614 A/C compressor. Designed for 2010-2013 2.4L models, this direct-fit replacement restores factory cooling performance without compromise.

───────────────────────────────

✅ VEHICLE COMPATIBILITY
– Suzuki Kizashi 2.4L Petrol (2010, 2011, 2012, 2013)
– Cross-compatible: Suzuki Grand Vitara 2.4L (2008-2013)

⚠️ Check your existing compressor’s part number matches before purchase

───────────────────────────────

🔩 TECHNICAL DETAILS

Compressor Model: CSV614 (Semi-Closed Design)
Pulley Configuration: 6-groove serpentine belt | 110mm diameter
Electrical: 12V electromagnetic clutch
Refrigerant Type: R134a system compatible
Mounting: Direct bolt-on OE replacement

───────────────────────────────

📋 REPLACES THESE SUZUKI PART NUMBERS
95200-76KB1 | 95200-76KA0 | 95200-76KA1
95201-76KA0 | 95339-58J00 | 95339-65D00
A4101-140C00

───────────────────────────────

📦 PACKAGE CONTENTS
✓ CSV614 compressor unit with semi-closed shell
✓ Pre-installed electromagnetic clutch
✓ 6-groove 110mm pulley assembly
✓ Backed by 12-month parts warranty

───────────────────────────────

🏆 OUR SERVICE PROMISE
⚡ Same-day dispatch on orders placed before 2pm
🇬🇧 Shipped from UK warehouse
📦 Professionally packaged for safe delivery
🛡️ 1-year manufacturing defect warranty
💬 Expert product advice available

───────────────────────────────

🔧 FITTING NOTES – IMPORTANT

This component must be fitted by an F-Gas certified air conditioning specialist. Required steps include:

1. Flush entire A/C system to remove contaminants
2. Replace receiver-drier (essential for warranty validity)
3. Add correct PAG oil specification and volume
4. Vacuum leak-test system
5. Recharge with appropriate R134a quantity
6. Verify belt alignment and tension

DIY installation is not recommended and will void warranty coverage.

───────────────────────────────

🚨 IS YOUR A/C COMPRESSOR FAILING?

Common warning signs:
– No cold air or intermittent cooling
– Unusual noises when A/C engaged (grinding/squealing)
– Compressor clutch won’t activate
– Oil residue visible on compressor casing
– Dashboard A/C warning indicator lit
– Burning smell from engine bay

───────────────────────────────

📊 SPECIFICATION SUMMARY

| Parameter | Value |
|———–|——-|
| Model | CSV614 |
| Grooves | 6 |
| Pulley Ø | 110mm |
| Voltage | 12V |
| Shell Type | Semi-closed |
| Warranty Period | 12 months |

───────────────────────────────

💡 PRO TIP
Fresh refrigerant oil and a new drier extend compressor life significantly. Never skip these steps when replacing the compressor.

───────────────────────────────

🚚 FAST UK DELIVERY
Payment received before 2pm = same working day dispatch
Tracked courier service with 1-3 day mainland UK delivery

───────────────────────────────

Need help finding the right part? Our team is ready to assist!
